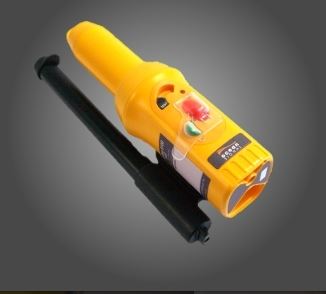

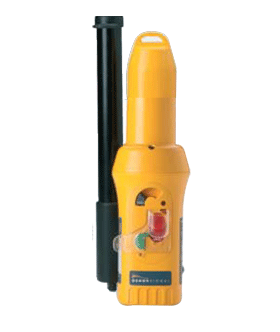

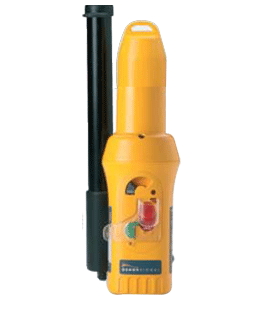

Ocean Signal SafeSea S100 SART with mounting pole.
The SafeSea SART is an X-band radar transponder which complies with IMO regulations.
•Superior battery life – even at -20°C
•User replaceable battery
•Non Hazardous battery - avoid high carriage fees for "dangerous goods" classification.
•Five year replacement interval
•Compact size for easy liferaft packing
•Supplied complete with telescopic pole and storage bracket
Carriage requirements
•SARTs are required on all IMO SOLAS vessels on international voyages:-
◦One on 300-500GRT
◦Two if over 500GRT
◦One SART per every four liferafts on ro-ro passenger vessels
•Nationally mandated vessels, including fishing vessels, passenger craft, commercial workboats, etc
•Most Super and Mega yachts are required to carry a SART, especially if covered by the MCA code of practice, which is recognised by many countries.
•Voluntary fit vessels will also benefit by carrying a SART
The SeaSafe S100 SART is designed to assist in the rescue and recovery of liferafts and survival craft. When switched on, the SART remains in a standby mode until automatically activated by an X Band Radar sweep from any vessel in the vicinity.
The SafeSea S100 transmits a series of pulses which are displayed on the ships Radar as a line of dots, providing a bearing to the survival craft. The activation controls are identical to those on theSafeSea E100 EPIRB, making use by unskilled operators much easier.
Specifications:
General Frequency range 9.2-9.5GHz
Radiated output power >26dBm eirp
Battery Type Lithium Primary Chemistry Lithium/Iron Disulfide (Li/FeS2)
Operational Life >96hours standby plus >12hours operational
Battery Replacement Interval 5years
Environmental Operating Temperature Range -20°C to +55°C
Storage Temperature Range -30°C to +70°C
Waterproof >10metres at +20°C
Dimensions Height 227mm Body Diameter (max) 65mm (82mm)
Standards and Approvals IMO regulations A.694(17); MSC.247(83)
International Standards Radio IEC61097-1 International Standards EMC IEC60945 European approval Marine Equipment Directive A.1/4.18 USA Standards FCC CFR47 part 80.1101
